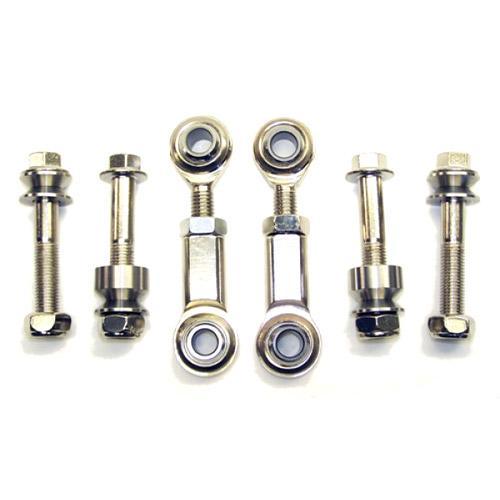

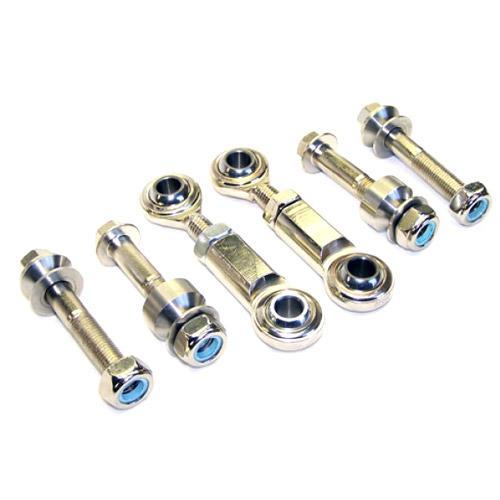

Front Swaybar Relocation Kit

The Front Sway Bar Relocation Modification is a proven upgrade developed specifically for the Scion FR-S, Toyota 86, Subaru BRZ, and Toyota GR86 platform. Popular among drift enthusiasts, this modification is designed to maximize steering angle and improve suspension geometry by relocating the front sway bar end links from the steering knuckle to the lower control arm using Acura RSX front sway bar end links.

On the FR-S/86/BRZ/GR86 chassis, aggressive steering angle setups can cause the factory sway bar end links to reach their articulation limits, creating sway bar bind and restricting steering travel. Relocating the end links to the lower control arm allows the sway bar to move more naturally throughout the suspension's range of motion, reducing unwanted preload and providing smoother, more consistent steering at full lock.

This modification is especially beneficial for vehicles equipped with angle kits, extended lower control arms, or other modified steering components where the factory sway bar mounting location becomes a limiting factor. It has become a trusted solution within the drift community for improving steering consistency and reducing stress on sway bar end links during aggressive driving.

Installation requires drilling a new mounting hole in each front lower control arm. Professional installation is recommended, as this is a permanent modification to the factory control arms.

Features:

• Designed specifically for the Scion FR-S, Toyota 86, Subaru BRZ, and Toyota GR86
• Popular drift modification for high-angle steering setups

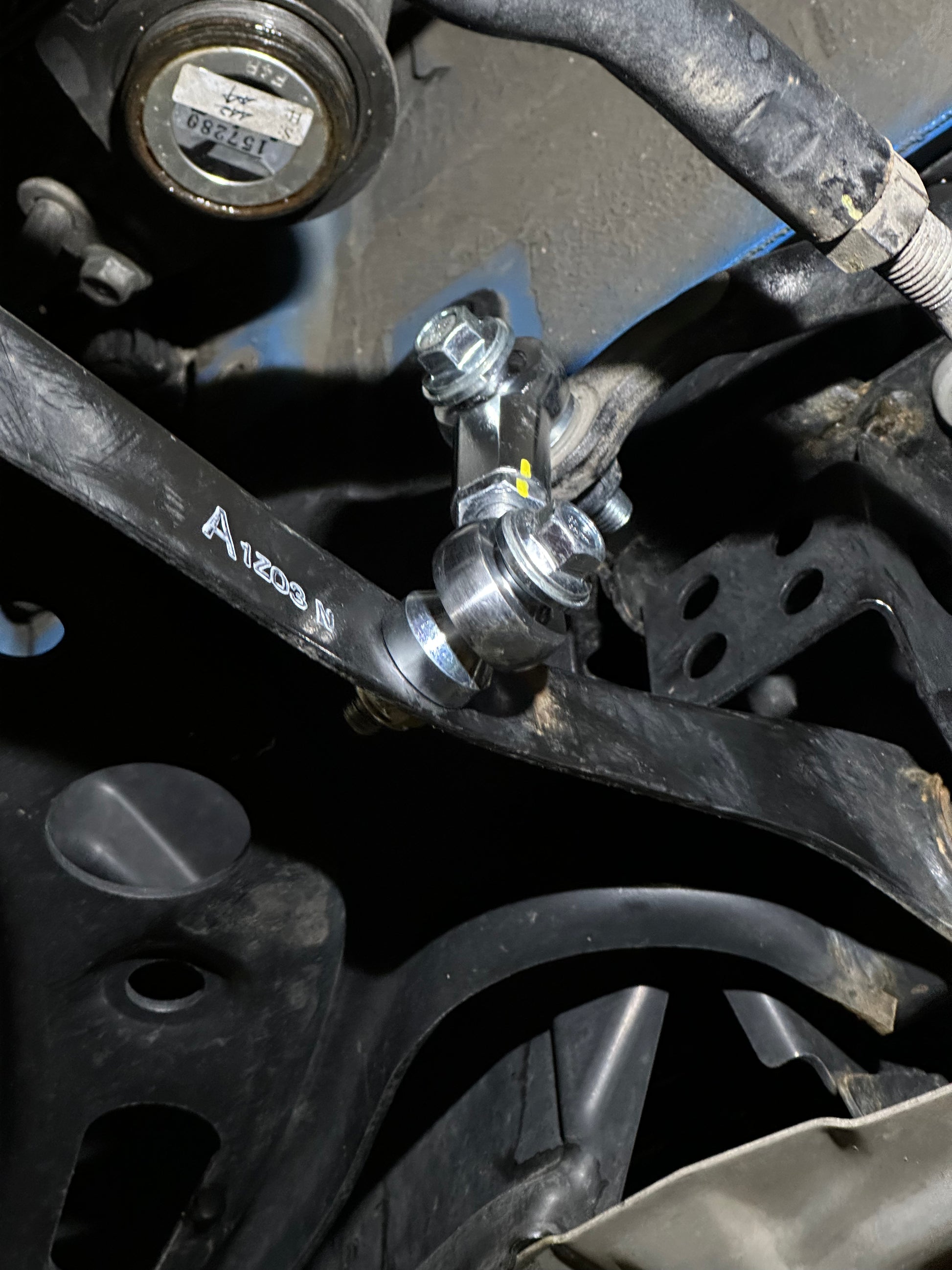

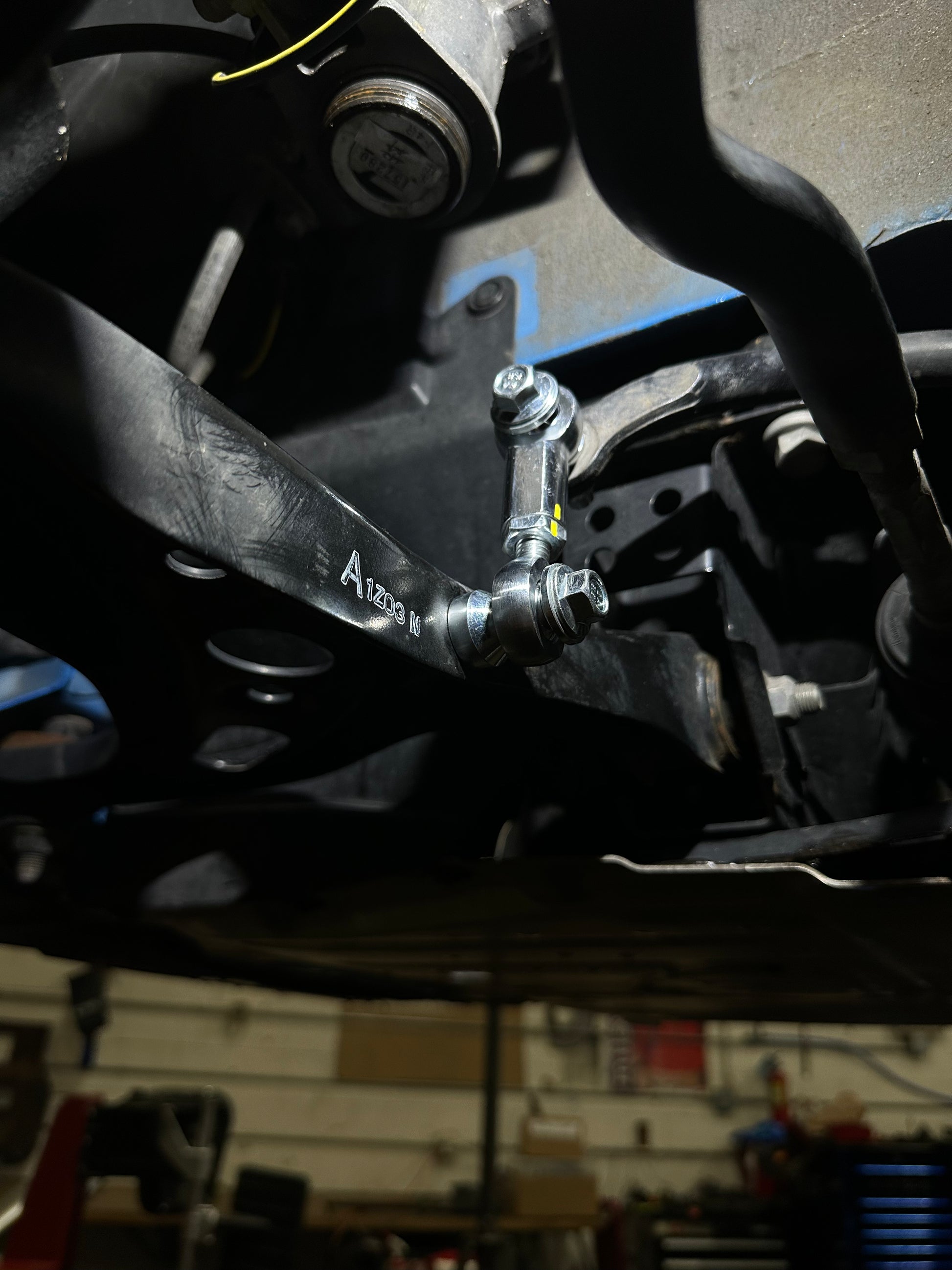

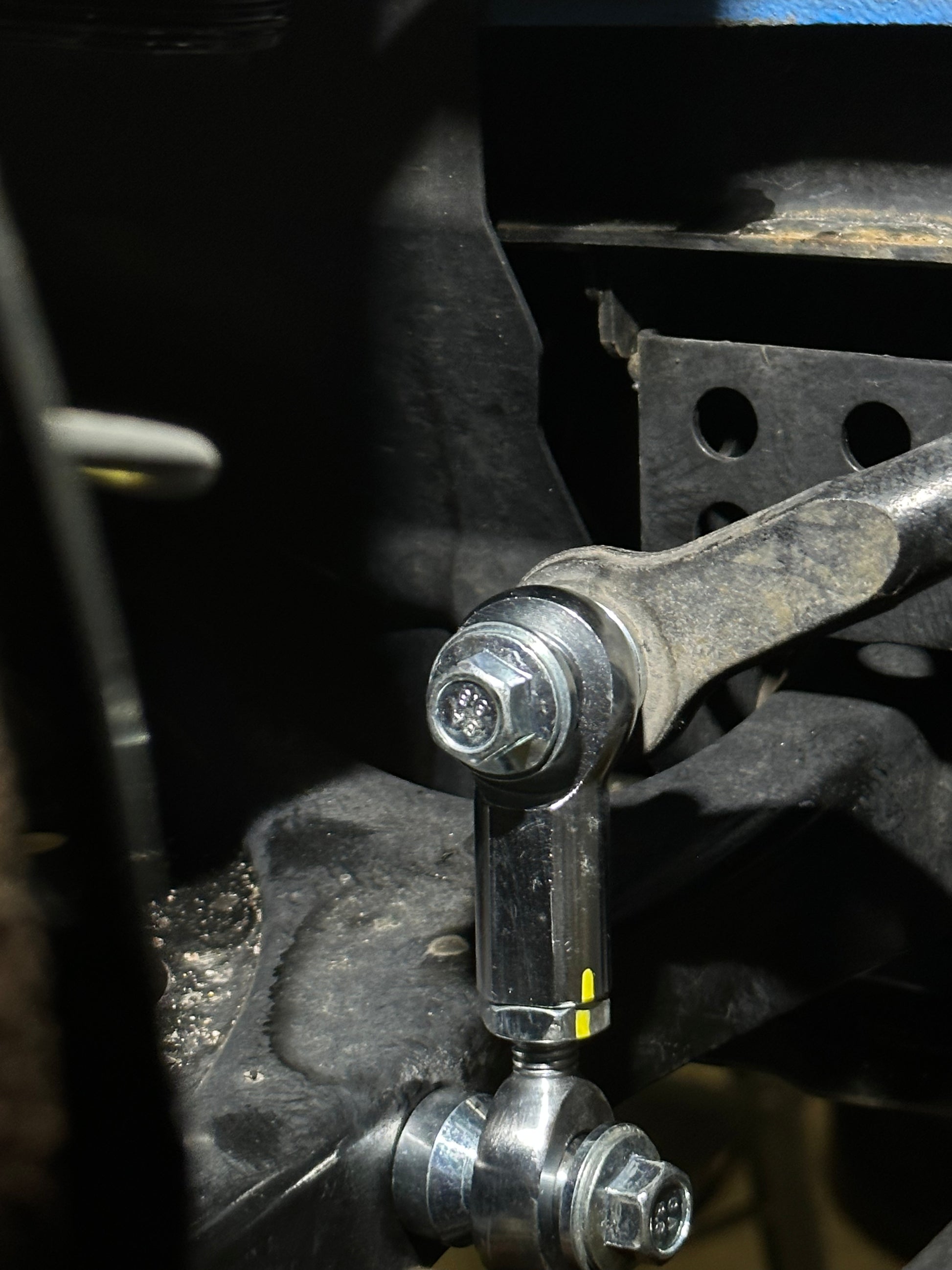

• Relocates the front sway bar end links to the lower control arms
• Uses Acura RSX front sway bar end links
• Helps reduce sway bar bind at increased steering angles
• Improves steering consistency at full lock
• Ideal for vehicles equipped with angle kits or extended control arms
• Requires drilling a new mounting hole in each front lower control arm
• Intended for off-road, competition, and drift applications
