Oil Baffle Plate

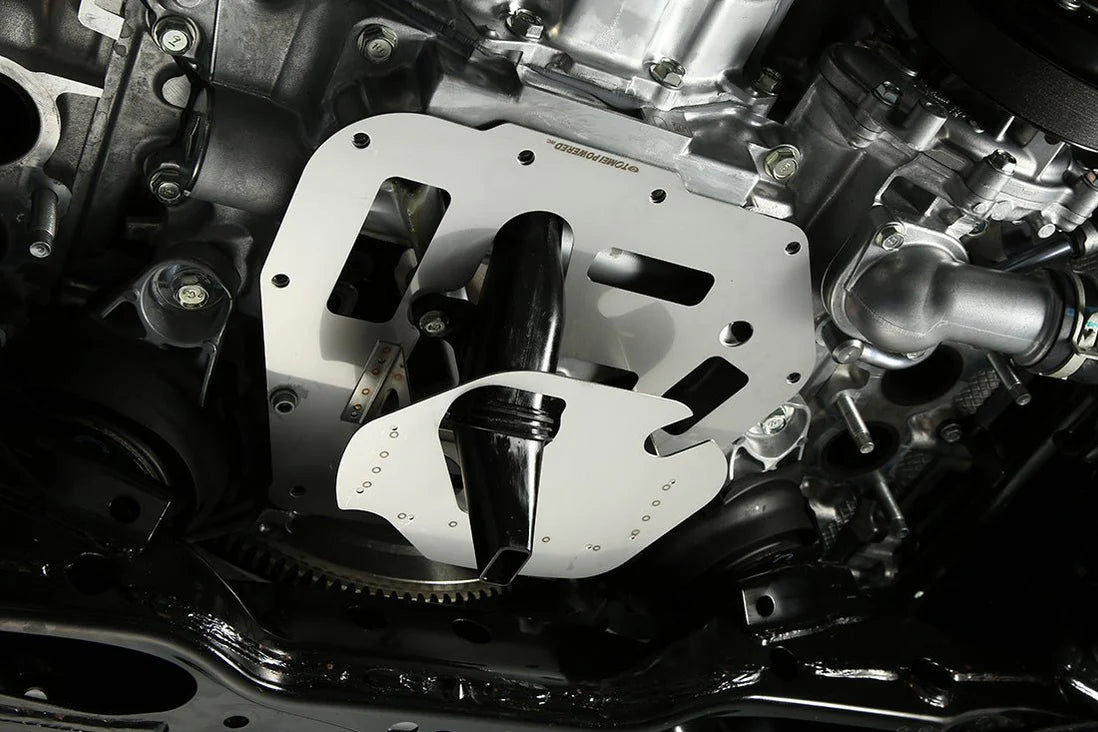

Protect your FA24 engine during high-performance driving with the Tomei Oil Pan Baffle Plate, engineered specifically for the 2022+ Toyota GR86 and Subaru BRZ. Designed to combat oil starvation caused by hard acceleration, braking, and sustained cornering, this motorsport-inspired upgrade helps keep the oil pickup submerged by controlling oil movement inside the oil pan, providing a more stable oil supply under demanding driving conditions.

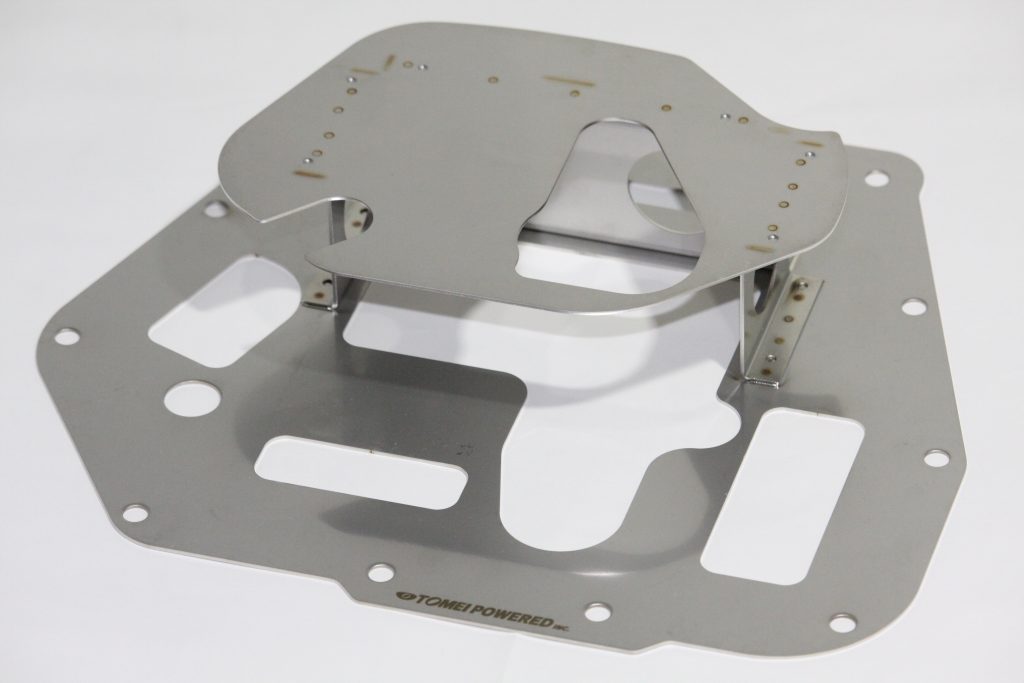

Constructed from SUS304 stainless steel, the Tomei baffle features a unique multi-plate design that works in two stages. The upper baffle plate controls oil splash and prevents oil from climbing the walls of the oil pan during high-G maneuvers, while the lower baffle plate slows oil movement and keeps it concentrated around the pickup tube. Together, these plates help maintain a more consistent oil level at the pickup during aggressive driving. The complete assembly weighs approximately 580g and includes all required mounting hardware.

The Tomei Oil Pan Baffle Plate is an excellent upgrade for enthusiasts who regularly participate in track days, autocross, time attack, or spirited canyon driving. It is also an approved engine oil control component for the TOYOTA GAZOO Racing GR86/BRZ Cup, highlighting its motorsport pedigree.

Features:

• Fits 2022+ Toyota GR86 (ZN8)
• Fits 2022+ Subaru BRZ (ZD8)
• SUS304 stainless steel construction
• Multi-plate design stabilizes oil movement
• Helps reduce oil starvation during high-G driving

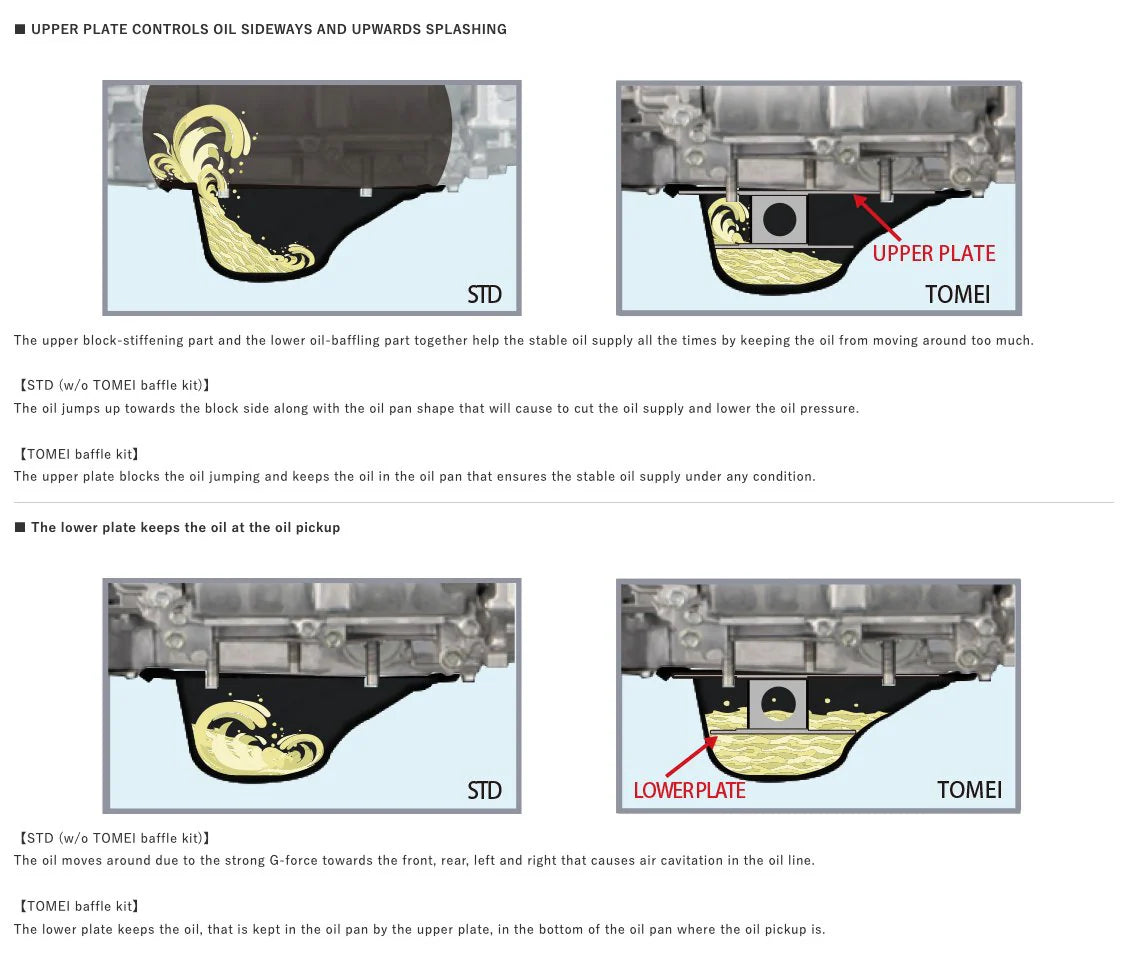

• Upper plate controls oil splash and oil level tilt
• Lower plate keeps oil around the pickup tube
• Improves oil supply consistency during acceleration, braking, and cornering
• Weighs approximately 580g

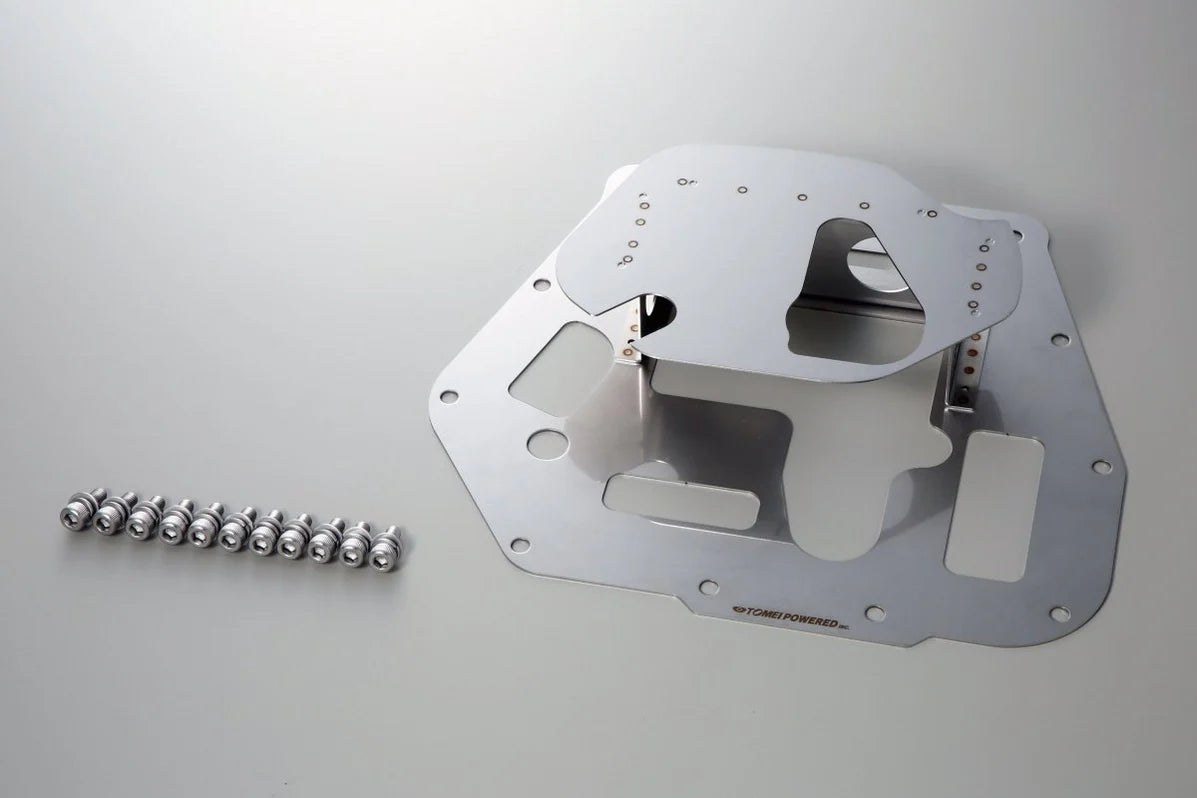

• Includes mounting hardware
• TOYOTA GAZOO Racing GR86/BRZ Cup approved component
• Manufactured by Tomei Powered in Japan
